Place of Origin : China
Brand Name : CLW
Certification : ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number : CLW
MOQ : 1
Price : 15000-35000 per unit
Packaging Details : Nude
Delivery Time : 65 working days after deposit
Payment Terms : 50% Deposit,Balance should be paid before ship out
Supply Ability : 500PCS/Week
Model NO. : Dongfeng
Volume : 3001-5000L
Emission Standard : Euro 2
Transmission Type : Manual
Payload : 20T
Fuel : Diesel
Drive Wheel : 4×2
Horsepower : <150hp
Condition : New
Brand : Dongfeng DFAC
Capacity : 5000 Liters
Drive Model : 4*2
Truck Model : Fire Rescue Truck
Other Eqiument : Electric Winch and 3 Ton Crane
Transport Package : Nude
Specification : 7660*2500*3460mm
Trademark : Dongfeng DFAC
Origin : China
HS Code : 8705309000
Customization : Available
Type : Rescue
Shipping Cost : Contact the supplier about freight and estimated delivery time.
: Support payments in USD
Secure payments : Every payment you make on Made-in-China.com is protected by the platform.
Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture : Chengli Special Automobile Co.,Ltd
Dongfeng 6 Wheels 1 Ton Fire Fighter Vehicle Water Tank Fire Fighting Truck," is a model that falls into the category of a Mini or Light Fire Fighting Truck.
While a "1 ton" designation often refers to the payload capacity of a small commercial truck, in the context of fire trucks, the capacity is typically measured in liters (L) or metric tons (tonnes) of water. The closest and most common model matching your description is a Dongfeng 1,000 Liter (1 Tonne) Water Tank Fire Truck built on a light-duty Dongfeng chassis.
Key Specifications (Approximate) | |
---|---|
Component | Detail |
Chassis | Dongfeng (various light-duty models like EQ1040) |
Drive Type | 4x2 (6 wheels, 4 driving wheels—though small trucks often have 4 wheels with a dual rear axle to make 6 total) |
Water Tank Capacity | 1,000 Liters (1 Tonne) or close variations (e.g., 2,000L/2 Tonnes) |
Water Tank Material | High-quality Carbon Steel (often with anti-corrosion treatment), or optional Stainless Steel/PP |
Cab Type | Double-row, four-door passenger compartment (allows for 4-6 crew members) |
Engine | Diesel engine (e.g., in the 100-130 horsepower range) |
G.V.W. (Gross Vehicle Weight) | Approximately 4,000 kg to 6,600 kg (4 to 6.6 tonnes) |
Max Speed | Approx. 90 km/h to 100 km/h |
Fire Fighting Capabilities | |
Component | Specification |
Fire Pump Model | CB10/20 (Normal Pressure Pump) or similar |
Fire Pump Flow Rate | Typically 20 L/s at 1.0 MPa |
Fire Monitor (Water Cannon) | Model PS20 or similar |
Water Jet Range | ≥45 meters |
Suction Depth | ≥7 meters |
Piping System | Equipped with a sandwich Power Take-Off (PTO), full pipeline system, inlets, and outlets. |
Model | Parameters | others | |||||
---|---|---|---|---|---|---|---|
Overall Dimension | 7660×2500×3460 | ||||||
GVW | 15560kg | ||||||
Engine Model | Dongfeng | ||||||
Engine Power | 177kW | ||||||
Wheelbase | 4500mm | ||||||
Driving Type | 4X2 | ||||||
Max.speed | 90km/h | ||||||
Emission Standard | 7790 ml | Euro2 | |||||
Passengers | 1+1+4 | ||||||
Fire pump rated flow | 60L/S@1.0Mpa;30L/S@2.0Mpa | Vacuum pump | |||||
water monitor rated flow | 48-64L/s | Adjustable | |||||
Water monitor range | Water range≥60m,foam≥55m | ||||||
Approach angle | ≥16° | ||||||
Departure angle | ≥23° | ||||||
Item Parameters | Parameters | others | |||||
1 | Water tank capacity | water | 3000 | Built-in type | |||
Foam tank capacity | foam | 2000 | |||||
2 | Fire pump model | CB20·10/30·60 | Shanghai rongshen | ||||
3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:60L/S Pressure2:2.0Mpa flow:30L/S | Use vacuum pump to priming water | |||
4 | the installation site of fire pump | rear | |||||
5 | The quantity of fire pump water outlet | 6 | |||||
6 | Pressure gauge | 0-1.6 Mpa, 0-2.5 MPa | 2.6 level | ||||
7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||||
8 | Water monitor (PL48-64YZ) | water | Flow: 48- 64L/S | Range:60m | Shandong zhangqiu | ||
foam | Range:55m | ||||||
Depression/Elevation angle | -30-+70° | ||||||
Turning angle 360° | |||||||
9 | PTO Model | YTQ590K type full power sandwich , pneumatic |
The Dongfeng "6 Wheels 1 Ton" Fire Fighting Truck is a compact, customized vehicle, typically with a 1,000 Liter (1 Ton) water capacity, built on a light-duty Dongfeng commercial chassis.
The "6 wheels" refers to the dual rear tires on a single axle, making it a standard 4x2 drive configuration but with six total tires/wheels.
Here are the detailed production and technical specifics for this type of vehicle, often designated with a model number like EQ1040D16DC for the chassis.
The Dongfeng 6-Wheel 1-Ton Fire Fighter Vehicle with a water tank (often categorized as a light or mini fire truck with a 1,000-liter capacity) is primarily designed for rapid first response and operations in environments where larger fire trucks have difficulty maneuvering.
Its key applications include:
Chengli Special Automobile Co., Ltd. is a major, large-scale manufacturer in China's special-purpose vehicle industry. It is a core enterprise of the CLW Group and is recognized as one of the top private enterprises in China.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. has a significant and expanding presence in the global special vehicle market, with its products exported to a large number of countries across multiple continents. The company actively seeks to align with international development initiatives, such as the "Belt and Road" construction.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
![]() |

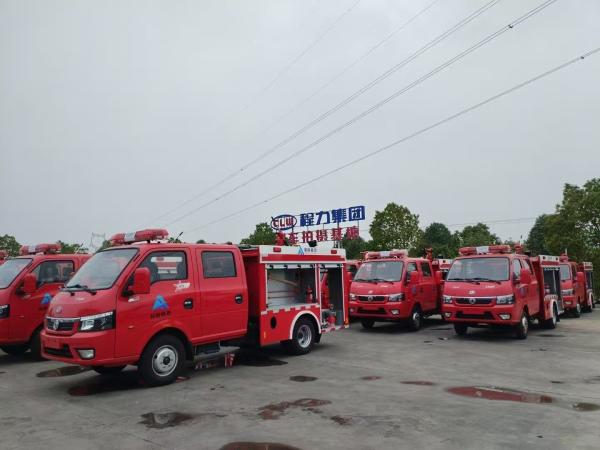

Dongfeng 6 Wheels 1 Ton Fire Fighter Vehicle Water Tank Fire Fighting Truck Images |
